P.A amplifier
- Multi AMP

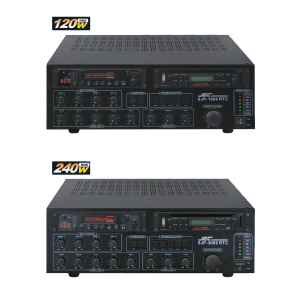

MODEL : SJP - 1500RTC/3000 RTC
- Product Features
- - 4 microphones(XRL and 5.5 plug can be used)
- - Phantom 24V supported for condenser microphone
- - 3 external Inputs (Aux)
- - Main Input/Pre out/Rec. out function
- - 4 Speaker selectors, ALL x 1
- - Speaker line (70V-100V) and 4Ω, 8Ω, 16Ω
- - Echo delay
- - Chime, emergency siren
- - 3 band tone control volume
- - Level meter displays the output condition
- - DC 24V connector against blackout
- - Built-in type of circuit breaker against high temperature
and overload - - Built-in bracket for the installation of rack cabinet
- Extra Functions
- - Auto Reverse(Recording, Replay) Cassette
- - AM/FM digital tuner
- - Media of reproduction : CD, USB, MP3,WMA, SD,
SDMC CARD
Specification
| Type | P. A. Amplifier | ||
|---|---|---|---|
| Model | SJP-1500 RTC | SJP-3000 RTC | |
| Power Output | Rated : 120W | Rated : 240W | |
| Input Channel | Mic : 4 ch, Line : 4 ch. | ||
| Out selector | Ch. 1, 2, 3, 4, All | ||
| Other function | Chime / Siren / Echo / Delay / Pre-out /Aux input / tone control /over heat protect. Anti Shock CD/ USB & SD Card Reader/AM&FM Tuner Remote control/Logic Auto Reverse Cass REC. | ||
| Output | Speaker output | Speaker output | |
| 4Ω(22V) | 4Ω(31V) | ||
| 8Ω(31V) | 8Ω(44V) | ||
| 16Ω(44V) | 16Ω(62V) | ||
| 83Ω(100V) | 42Ω(100V) | ||
| Frequency Response (±3dB), 8Ω/1W |
80 ~ 18,000Hz | ||
| Total harmonic distortion | Less than 0.5% at 1KHz, rated power | ||
| S/N Ratio (DIN Audio) | line | More than 70dB | |
| Input Sensitivity XLR,1/4”Jack | Mic | -52dBm/600Ω(balanced) | |
| Line | -10dBm/15KΩ(Unbalanced) | ||
| Ext Amp In | -0dBm/15KΩUnbalanced) | ||
| Preout Sensitivity | -0dBm/10KΩ(Unbalanced) | ||
| Dimensions(W x H x D) | 420 x 133 x 350(mm) | ||
| Weight | 15KG | 19KG | |
| AC Power | AC220V/60Hz, DC24V | ||
| Power Consumption | 300watts | 600watts | |
